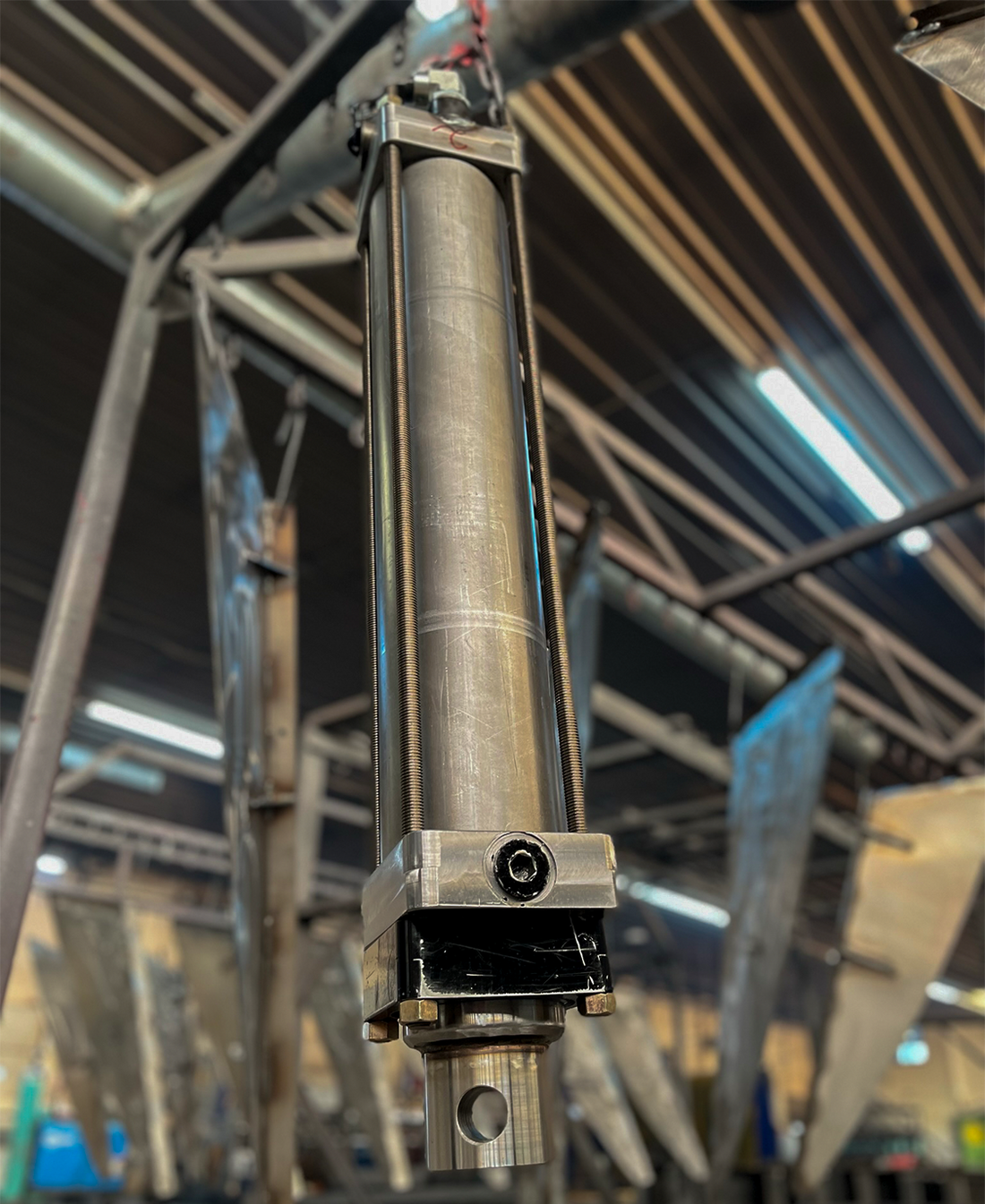

How to Size a Hydraulic Cylinder / Pump Correctly for Your Application

When designing or specifying a hydraulic system, correctly sizing the hydraulic cylinder and the pump is critical. Undersizing can lead to poor performance or failure to move the required load; oversizing can waste energy and increase costs. Below is a step-by-step guide to help you define the right cylinder and pump size for your application — plus why sourcing quality, American-made cylinders makes a practical difference.

1. Start With the Application Requirements

First — define clearly what the cylinder must do:

What load (force or weight) must it move — push/pull, lift, press, clamp, etc.
What stroke (how far) and what speed (how fast) the load must travel.
What environment: vertical lift vs horizontal push/pull, duty cycle (intermittent or continuous), ambient conditions, special requirements (e.g. marine, dust, heat).

These parameters will drive all subsequent sizing decisions — bore size, rod diameter, stroke length, port size, flow needs, and pump capacity.

2. Determine Required Force and Cylinder Bore Size

To decide the cylinder’s bore size, you start from the required force (F) and system pressure (P). The relationship is:

F = P × A

where A is the piston’s effective area.

Compute the piston area based on the diameter (blind end). (ahp.de)
Then choose a bore diameter such that the available pressure times the piston area meets or slightly exceeds the required force — allowing margin for friction, seal losses, and safety. Some guidelines suggest sizing a hydraulic cylinder about 5% above the required force for standard applications. (Parker Hannifin Corporation)
Also consider that on the rod side (retraction), the effective area is smaller — so if retraction force is critical, you must size accordingly.

Don’t forget that friction (from seals, guides, sliding surfaces) reduces effective output force. Especially for small-diameter pistons or low-pressure systems, seal friction can account for a larger portion of losses.

3. Choose Rod Diameter, Stroke, and Mounting Style Carefully

Once you know the bore, the next important decisions are:

Rod diameter — must be adequate to resist bending or buckling, especially in long-stroke or horizontally mounted cylinders. A rod that’s too thin can fail; oversizing rod makes the cylinder heavier and more expensive.
Stroke length — must cover the full travel needed, with a safety/clearance margin to avoid mechanical interference at full extension or retraction.
Mounting style (clevis, flange, trunnion, foot, etc.) — influences how loads (thrust, side loads, bending moments) are transferred. The mounting must match your application geometry and loading conditions.

Designers should also think about port size and location, cushioning (if needed for smooth stops), and whether long-stroke cylinders need stop tubes or other internal guidance. (Bonyan Tadbir Pars)

4. Determine Pump Flow (and Pump Size) — Matching Speed Requirements

Cylinder size alone doesn’t guarantee correct performance; you also need to match the pump flow rate to the required actuator speed. Roughly: the larger the piston area and the faster you want the stroke, the more flow you need. (Evolution Motion Solutions -)

Use the formula (simplified):

Q (flow) = (Piston area × Stroke length) / (Cycle time × constant)

This gives the minimum pump flow (e.g. gallons per minute) needed to move the cylinder within the desired time. (cbvl.com)

If you undersize the pump, the cylinder may move too slowly — or fail to reach full stroke under load — even if the cylinder bore is correctly dimensioned. Conversely, oversizing flow/pump may waste energy and cause rough operation or unnecessary heat buildup.

Also ensure that port size, hose size, and piping support the required flow without excessive pressure drop — otherwise, you lose effective pressure at the cylinder.

5. Build in Safety Margins & Real-World Considerations

Good practice in hydraulic design always includes a safety factor. That means specifying cylinders with a bit more capability than the theoretical minimum — to allow for friction, wear, seal degradation over time, unexpected overloads, dynamic forces (e.g. acceleration), and variations in fluid pressure or temperature. (Machine Design)

Also, consider the impact of cylinder cycling frequency, duty cycle, and maintenance intervals. A cylinder used intermittently in gentle lifting may be sized differently than one used constantly under heavy loads or in harsh environments. Seal material, rod hardness, corrosion resistance, and environmental sealing become more important in demanding conditions.

6. Why Choosing American-Made Cylinders Matters for Proper Sizing & Reliability

When you design a hydraulic system and size your cylinders and pump carefully, it’s ideal that the components you buy meet the design tolerances and quality expectations. Here’s how HydraWolf Hydraulics adds value:

Our hydraulic cylinders are designed, fabricated, and tested in America, under stringent quality-control standards.
By buying directly from the manufacturer, you often get faster lead times and reliable delivery, which minimizes project delays or downtime.
Direct sourcing also opens opportunities for customization — you can order cylinders with exact bore, stroke, rod diameter, mounting style, port layout, etc., to match your application requirements precisely.
High-quality, locally manufactured cylinders tend to have better materials, tighter tolerances, and robust seals, which improves longevity, reduces leakage or stiction, and ensures more predictable performance over time — particularly important when cylinders are operating near their design limits.
Finally, sourcing from a US-based manufacturer can reduce total cost of ownership over the lifecycle: fewer failures, easier maintenance/part replacement, less downtime, and no import delays or tariffs.

Choosing a quality manufacturer like HydraWolf helps ensure that the cylinder you size on paper behaves as intended in the real world — and that your overall hydraulic system remains reliable and cost-effective.

7. Example Use Case: Designing a Lift Cylinder for a Compact Loader

Suppose you need a hydraulic cylinder to lift the bucket of a compact loader:

Required lift force: 6,000 lbf
Supply pressure available: 2,000 psi (working pressure)
Desired lift speed: medium — full lift in ~2 seconds
Stroke (lift travel): 18 inches

Sizing steps:

Calculate piston area needed: A = F / P = 6,000 lbf ÷ 2,000 psi = 3 in². Then choose a standard bore diameter somewhat larger than minimum — e.g. a 2-inch bore gives ~3.14 in²; but to allow margin, you might select a 2.5-inch or 3-inch bore.
Select rod diameter and mounting style to suit the loader geometry and avoid side loads.
Check flow requirements: compute needed flow to move 18 inches in ~2 seconds. Using standard fluid power flow formulas will tell you a minimum pump GPM; choose a pump slightly above to allow for inefficiencies.
Add safety factor — perhaps size for 7,000 lbf to cover dynamic loads or variation, and ensure seals and materials are rated for the working pressure plus margin.
If you order from HydraWolf Hydraulics, you can request a custom cylinder built to those specs — correct bore, stroke, rod, porting — ensuring it matches your design parameters exactly and is ready to integrate, with short lead time.

8. Example Use Case: Industrial Press Cylinder for Manufacturing

In a manufacturing press application, you might need a cylinder to apply a steady compressive force (e.g. for stamping, forming, clamping). For such use:

The exact force (static or dynamic) needed defines bore size; rod buckling (if retraction or side load) becomes critical, so rod diameter and mounting rigidity must be carefully selected. (Power Motion Tech)
Stroke may be short but frequent, with high duty cycle. This calls for durable materials, high-quality seals, and possibly designs with cushioned ends or slow damping to avoid shock — areas where refined manufacturing tolerances pay off.
Flow/pump selection must support not just force but speed and cycle frequency; a pump oversized for peak demand but capable of throttling may be preferred to maintain smooth operation.
Again, a manufacturer like HydraWolf who builds to spec can supply a cylinder optimized for these operational demands — including materials and sealing systems designed for frequent cycling, reducing maintenance and downtime.

9. Common Mistakes & What to Avoid

Undersizing without safety margin — designing exactly for the load can lead to failure as friction increases, seals wear, or load spikes occur. Always include a safety factor.
Ignoring retraction (rod-end) force requirements — remember that the area for retraction is smaller, and some applications expect symmetric performance.
Neglecting flow/port/line sizing — even a properly sized cylinder won’t perform correctly if hoses, ports, or pump flow are inadequate. Poor piping design can cause pressure drop, heat, slow cycle times, or fluid starvation.
Poor mounting or ignoring side loads/bending moments — a cylinder mounted incorrectly or subject to side loads can suffer rod bending, seal wear, or premature failure.
Using low-quality cylinders or imported components with unknown tolerances — substandard sealing, materials, or machining can result in leaks, inefficient motion, shorter life, or inconsistent performance.

10. Conclusion: Sizing with Confidence — And Why Quality Matters

Proper sizing of hydraulic cylinders and pumps is not just academic — it directly affects performance, safety, reliability, maintenance costs, and total lifecycle cost of your hydraulic system. By carefully defining load, stroke, speed, and duty requirements, calculating bore size, rod size, and flow, and allowing safety margins, you can specify a cylinder that works exactly as needed.

But equally important is what you build with: a precisely manufactured, high-quality cylinder from a reputable supplier. That’s why choosing an American manufacturer such as HydraWolf Hydraulics can add real value. With strict quality control, custom manufacturing, faster lead times, and robust components, you gain a cylinder that matches your design, performs consistently, and endures over time — reducing the risk of unexpected downtime or premature wear.

If you have a specific application in mind, consider working with your cylinder supplier (or design engineer) to run the calculations, confirm material and seal specs, and possibly print a custom specification sheet. With the right planning and a quality cylinder, you can ensure optimal performance, safety, and efficiency for your hydraulic system.
