Parts Breakdown |

TW-6

TW-6 Owners Manual

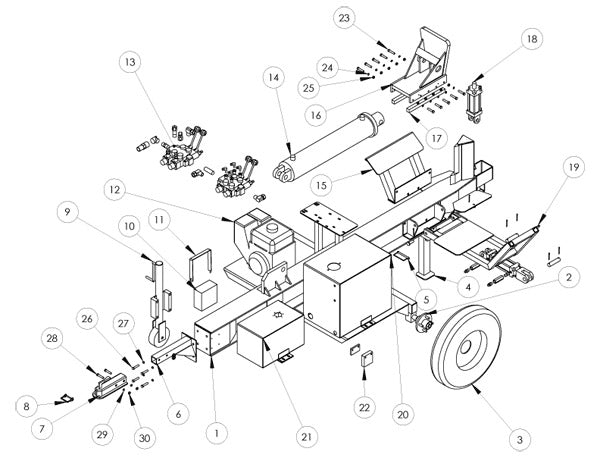

Part Number Description Quantity
1 020-012 TW-6 Frame Assembly 1
2 082-100-A Hub Assembly (Fig 3) 2
3 90000-00001 13" Tire 1
4 021-009 TW-6 Leg 1
5 40000-10005 Leg Locking Pin 1
6 063-016 Hitch Assembly 1
7 90000-00006 2" Ball Coupler 1
8 40000-10001 Coupler Pin 1
9 063-005 Splitter Jack 1
10 209-104 Interstate Battery 1
11 209-105-W Battery Hold Down 1
12 040-106-A Honda GX 610 (Fig 6) 1
13 50000-10025 / R-50000-10016 Valve Assembly (Fig 5) 1
14 R-901-021 / R-901-020 AT-98 Cylinder (Fig 1) 1
15 023-019 24" Cradle Assembly 1
16 024-126 TW-6 Push Block 1
17 R-9010-0016 1x1x14 Wear Plates 2
18 50000-30005 Wedge Lift Cylinder (Fig 7) 1
19 LS10-021-A 24" Log Lift Assembly (Fig 2) 1
20 094-118 TW-6 Hydro Tank (Fig 8) 1
21 9000-0042 TW-6 Fuel Tank 1
22 104-114-A Sun Valve (Fig 4) 1
23 3/8-16 x 2 1/4 Grade 8 Bolts 10
24 3/8 Grade 5 Lock Washers 10
25 3/8-26 Grade 8 Nuts 10
26 1/2-13 x 1 1/2 Grade 5 Bolts 4
27 1/2 Grade 5 Lock Washers 4
28 7/16-14 x 3 Grade 5 Bolts 2
29 7/16 Grade 5 Lock Washers 2
30 7/16-14 Grade 5 Nuts 2

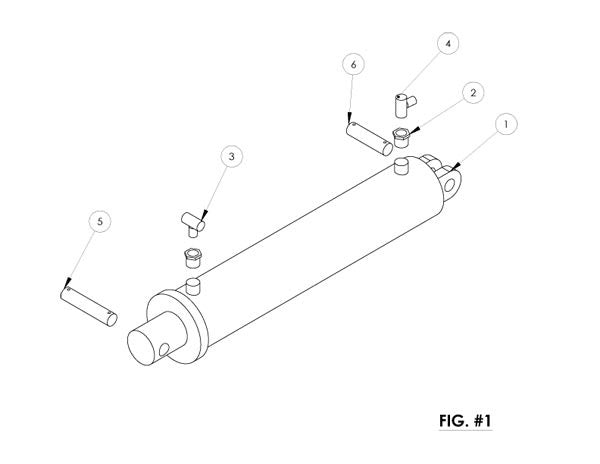

Figure 1 | Cylinder

Part Number Description Quantity
1 093-024 5" x 24" Cylinder AT-98 1
2 083-127 1" NPT x 3/4" NPT Bushing 2
3 102-026 3/4" Tee with 1/4" Tapped Hole 1
4 102-027 3/4" Branch Tee 1
5 083-131 1 1/4" Front Pin 1
6 083-132 1 1/4" Back Pin 1

Figure 2 | Hydraulic Log Lift

Part Number Description Quantity
1 024-020-W 24" Log Lift 1
2 022-021-W Bolt On Beam Bracket 1
3 093-012 2" x 6" Log Lift Cylinder 1
4 102-090 1/2 MB x 1/2 NPT Adapter 2
5 094-116 Flow Restrictor 2
6 102-021 1/2 NPT x 1/4 NPT Straight Swivel 2
7 083-001 1" Cylinder Pin 2
8 083-007 5/8 Log Lift Pin 2
9 5/32 x 2" Cotter Pin 6

Figure 3 | 4 Bolt Hub

Part Number Description Quantity
1 065-003 Dust Cap 1
2 Cotter Pin 1
3 062-022 1" Castle Nut 1
4 082-101 Wheel Bearings 2
5 Lug Nuts 4
6 082-100 4 Bolt Hub 1
7 061-106 Dust Seal 2

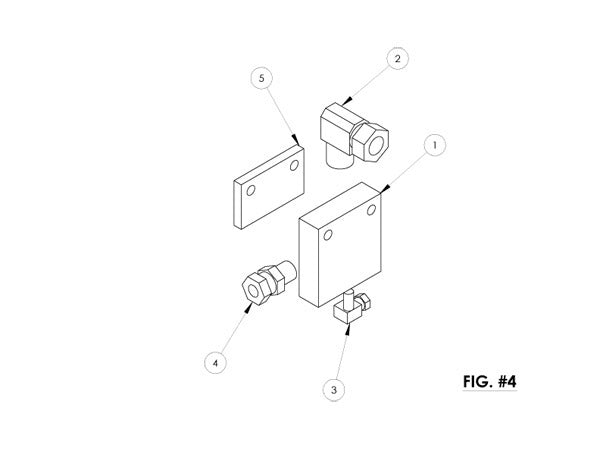

Figure 4 | Sun Valve

Part Number Description Quantity
1 104-114 Sun Valve 1
2 102-010 3/4 90 Deg Swivel 1
3 102-024 3/4" Straight Swivel 1
4 102-020 1/4" 90 Deg Swivel 1
5 104-007 Sun Valve Spacer Plate 1

Figure 5 | Valve Assembly

Part Number Description Quantity
1 104-101 LS3000 Valve 1
2 104-118 2 Spool Valve 1
3 102-043 3/4" x3 HD Pipe Nipple 1
4 102-010 3/4" 90 Deg Swivel 4
5 102-037 3/4" Male to 1/2" 90 Deg Swivel 1
6 083-126 1/2" MNPT x 1/4" Bushing 4
7 102-020 90 Deg Swivel 4
8 102-006 3/4" Hex Nipple 1
9 102-104 King Combo 1
10 102-039 3/4" x 1 1/4 90 Deg Elbow 1

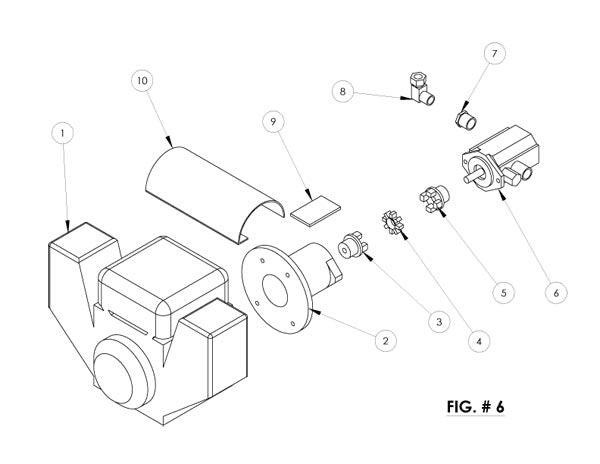

Figure 6 | Motor Assembly

Part Number Description Quantity
1 040-106 GX-610 Honda Engine 1
2 10000-10002 5" Bellhousing (Measure Face to Face) 1
2 10000-10003 5.5" Bellhousing (Measure Face to Face) 1
2 10000-10000 6" Bellhousing (Measure Face to Face) 1
3 10000-11006 1" Love Joy 1
4 10000-11008 Spider 1
5 10000-11017 5/8" Love Joy 1
6 50000-20001 22 GPM Pump 1
7 083-127 1"x3/4" NPT Bushing 1
8 102-010 3/4" 90 Deg Swivel 1
9 10000-12001 Access Cover 1
10 023-002 Heat Shield 1

Figure 7 | Wedge Lift Cylinder

Part Number Description Quantity
1 093-027 2" x 4" Cylinder 1
2 102-094 1/2" MB x 1/2 90 Deg Swivel 2
3 1" x 4" Pin 1

Figure 8 | Hydraulic Tank Sub-Assembly

Part Number Description Quantity
1 094-118 Tank 1
2 20000-20003 Suction Strainer 1
3 102-005 1 1/4" Street 90 1
4 102-104 1 14" King Combo 1
5 20000-20040 Intank Filter 1
6 20000-20041 Intank Filter Housing 1
7 20000-20042 Filter Gauge 1
8 102-109 1/2" Straight Swivel 1
9 102-027 3/4" Branch Tee 1
10 205-001 3/4" Tank Plug 1
11 205-109 1 1/4" Tank Plug 1
12 094-115 Sight Level Gauge 1
13 102-102 1" MB x 1 1/4" HB 1

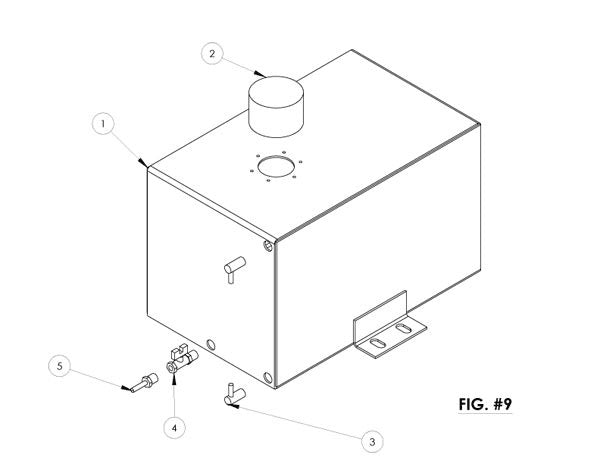

Figure 9 | Gas Tank Assembly

Part Number Description Quantity
1 9000-0042 Fuel Tank 1
2 20000-10004 Breather Cap 1
3 102-067 1/4" 90 Deg Hose Barb 2
4 094-102 1/4" Shut Off Valve 1
5 102-072 1/4" Hose Barb 1
