Parts Breakdown |

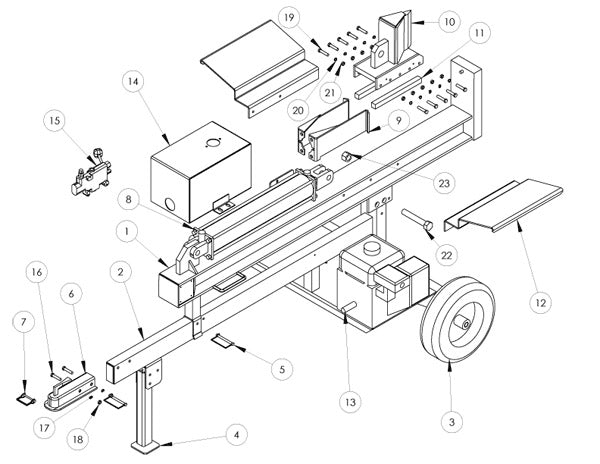

TW-HV1
| Part Number | Description | Quantity | |
|---|---|---|---|
| 1 | 020-007-W | TW-HV Top Frame | 1 |
| 2 | 020-007-W | TW-HV Bottom Frame | 1 |
| 3 | 061-101-A | 8" Tires and Hub (Fig 3) | 2 |
| 4 | R-9001-0068 | TW-HV1 Leg | 1 |
| 5 | 061-001 | Leg Pin | 2 |
| 6 | 90000-00006 | 2" Ball Coupler | 1 |
| 7 | 063-003 | Coupler Pin | 1 |
| 8 | 256-001 | 4 x 24 Cylinder (Fig 2) | 1 |
| 9 | 023-137 | TW-HV1 Strippers | 2 |
| 10 | 024-073-W | TW-HV Push Wedge | 1 |
| 11 | R-9001-0016 | HV Wear Plates | 1 |
| 12 | R-9010-0001 | HV Cradles | 2 |
| 13 | 040-107-A | TW-HV1 Motor (Fig 1) | 1 |
| 14 | 094-205-A | TW-HV Tank Assembly (Fig 4) | 1 |
| 15 | 104-101-A | LS-3000-1 Valve Assembly (Fig 5) | 1 |
| 16 | 7/16-14 x 3 Bolts Grade 5 | 2 | |
| 17 | 7/16 Lock Washers | 2 | |
| 18 | 7/16-14 Nuts Grade 5 | 2 | |
| 19 | 3/8 x 2 1/4 Bolts Grade 8 | 10 | |
| 20 | 3/8 Lock Washers Grade 8 | 10 | |
| 21 | 3/8 Nuts Grade 8 | 10 | |

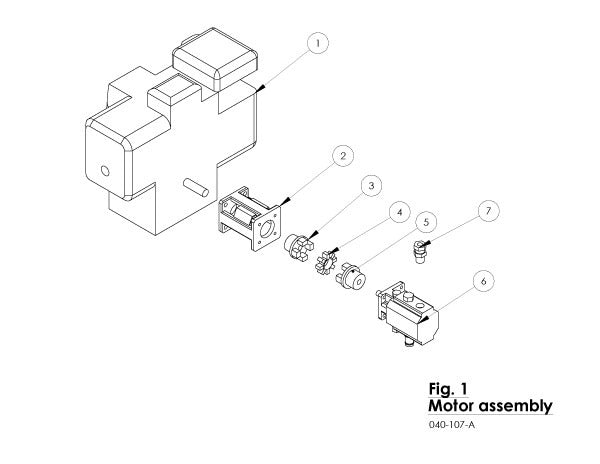

Figure 1 | Motor Assembly
| Part Number | Description | Quantity | |
|---|---|---|---|
| 1 | 70000-00005 | Honda GX-160 Engine | 1 |
| 2 | 10000-10001 | Pump Bracket | 1 |
| 3 | 10000-11005 | 3/4" Love Joy | 1 |
| 4 | 10000-11008 | Spider | 1 |
| 5 | 10000-11001 | 1/2" Love Joy | 1 |
| 6 | 50000-20003 | 22 GPM Pump | 1 |

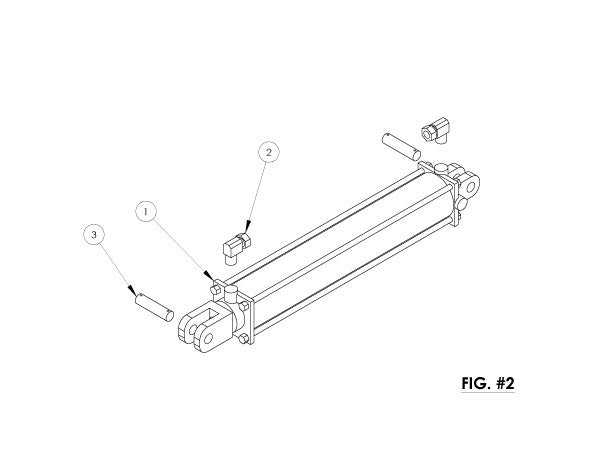

Figure 2 | Cylinder
| Part Number | Description | Quantity | |
|---|---|---|---|
| 1 | 256-001 | 4" x 24" Cylinder | 1 |
| 2 | 102-094 | 1/2" MB x 1/2" 90 Deg Swivel | 2 |
| 3 | 093-035 | 1 1/4" x 4" Pins | 2 |

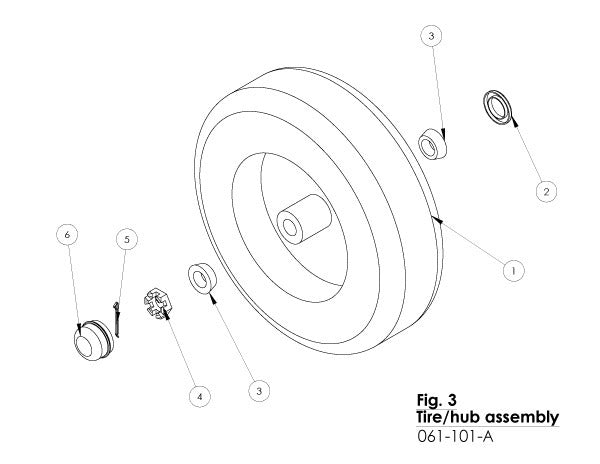

Figure 3 | Tire/Hub Assembly
| Part Number | Description | Quantity | |
|---|---|---|---|
| 1 | 061-101 | 8" Tire/Hub Assembly | 1 |
| 2 | 061-106 | Wheel Seal | 1 |
| 3 | 082-101 | Wheel Bearing | 2 |
| 4 | 062-002 | Castle Nut | 1 |
| 5 | 5/32" x 2" Cotter Pin | 1 | |
| 6 | 065-003 | Dust Cap | 1 |

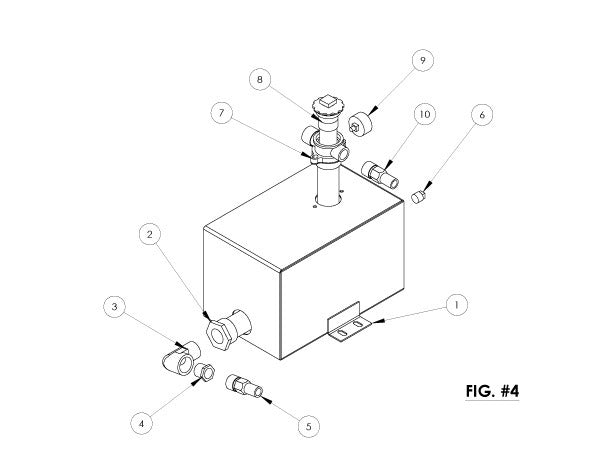

Figure 4 | Tank Sub-Assembly
| Part Number | Description | Quantity | |
|---|---|---|---|
| 1 | 094-205-W | Tank | 1 |
| 2 | 20000-20003 | Suction Strainer | 1 |
| 3 | 102-005 | 1 1/4" Street 90 | 1 |
| 4 | 083-124 | 1 1/4" x 1" Bushing | 1 |
| 5 | 102-034 | 1" Hose Barb | 1 |
| 6 | 205-105 | 1/2" Tank Plug | 2 |
| 7 | 20000-20039 | Filter Assembly | 1 |
| 8 | 20000-20038 | Intank Filter Element | 1 |
| 9 | 20000-20042 | Filter Gauge | 1 |
| 10 | 102-100 | 3/4" MB x 3/4" Hose Barb | 1 |

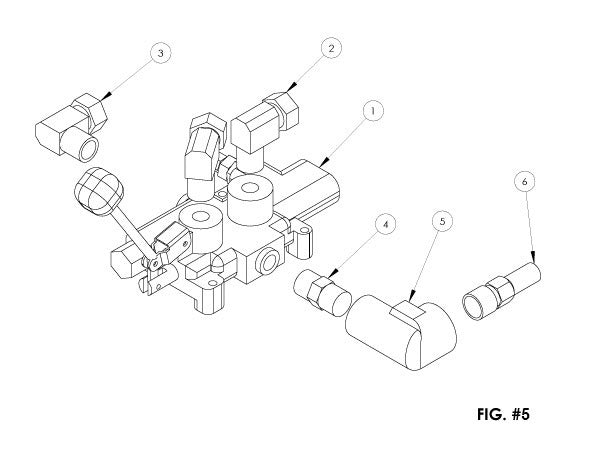

Figure 5 | Valve Assembly
| Part Number | Description | Quantity | |
|---|---|---|---|
| 1 | 50000-10003 | LS-3000-1 Valve | 1 |
| 2 | 102-007 | 1/2" 90 Deg Swivel | 3 |
| 3 | 083-125 | 3/4" x 1/2" Bushing | 1 |
| 4 | 102-014 | 3/4" Street 90 | 1 |
| 5 | 102-035 | 3/4" Hose Barb | 1 |
