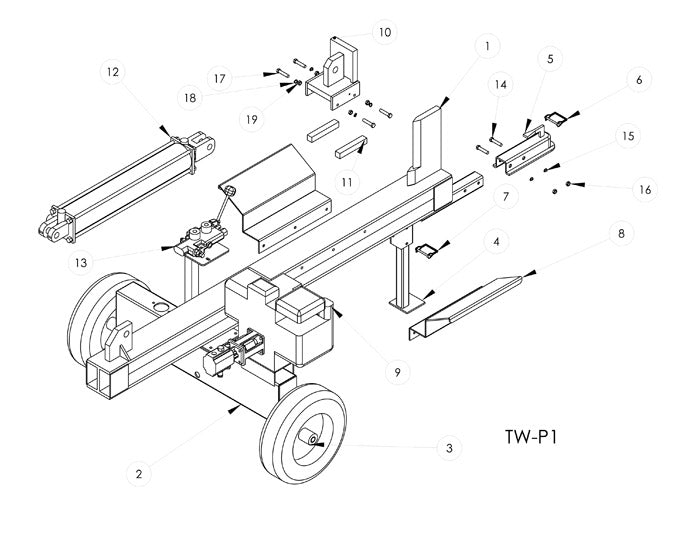

Parts Breakdown |
TW-P1 (Pre-2021)
| Part Number | Description | Quantity | |
|---|---|---|---|
| 1 | 001-109-W | TW-P1 Frame | 1 |
| 2 | 020-035-A | TW-P1 Tank Assembly (Fig 4) | 1 |
| 3 | R-90000-00005 | 8" Tires and Hub (Fig 3) | 2 |
| 4 | R-9001-0068 | TW-P1 Leg | 1 |
| 5 | 90000-00006 | 2" Ball Coupler | 1 |
| 6 | 40000-10001 | Coupler Pin | 1 |
| 7 | 40000-10000 | Leg Pin | 1 |
| 8 | R-9010-0001 | TW-P1 Cradles | 2 |
| 9 | 040-107-A | TW-P1 Motor Assembly (Fig 1) | 1 |
| 10 | R-9010-0004 | TW-P1 Push Block | 1 |
| 11 | R-9010-0005 | TW-P1 Wear Plates | 2 |
| 12 | 256-001 | TW-P1 Cylinder (Fig 2) | 1 |
| 13 | 50000-10003 | LS-3000-1 Valve (Fig 5) | 1 |
| 14 | 7/16-14x2" Long Bolt Grade 5 | 2 | |
| 15 | 7/16 Lock Washer | 2 | |
| 16 | 7/16-14 Nuts Grade 5 | 2 | |
| 17 | 3/8-16x2" Long Grade 8 | 4 | |
| 18 | 3/8 Lock Washer | 4 | |
| 19 | 3/8-16 Nut Grade 8 | 4 | |
Figure 1 | TW-HV1 Motor Assembly
| Part Number | Description | Quantity | |
|---|---|---|---|
| 1 | 70000-00005 | Honda GX-160 | 1 |
| 2 | 10000-10001 | Pump Bracket | 1 |
| 2 | 10000-12002 | Access Cover | 1 |
| 3 | 10000-11002 | 3/4" Love Joy | 1 |
| 4 | 10000-11007 | L-075 Spider Buna-N | 1 |
| 5 | 10000-11001 | 1/2" Love Joy | 1 |
| 6 | 50000-20003 | 11 GPM Pump | 1 |

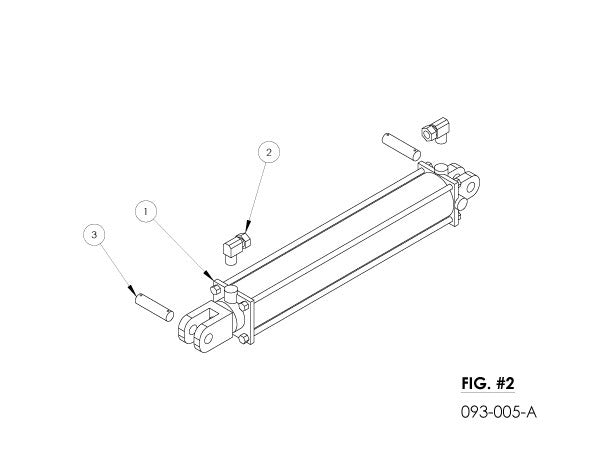

Figure 2 | Cylinder
| Part Number | Description | Quantity | |
|---|---|---|---|
| 1 | 256-001 | 4"x24" Cylinder | 1 |
| 2 | 102-007 | 1/2" 90 Deg Swivel | 2 |
| 3 | 083-001 | 1"x4" Pins | 2 |
Figure 3 | Tire/Hub Assembly
| Part Number | Description | Quantity | |
|---|---|---|---|
| 1 | 061-101 | 8" Tire/Hub Assembly | 1 |
| 2 | 061-106 | Wheel Seal | 1 |
| 3 | 082-101 | Wheel Bearing | 2 |
| 4 | 062-002 | Castle Nut | 1 |
| 5 | 5/32"x2" Cotter Pin | 1 | |
| 6 | 065-003 | Dust Cap | 1 |

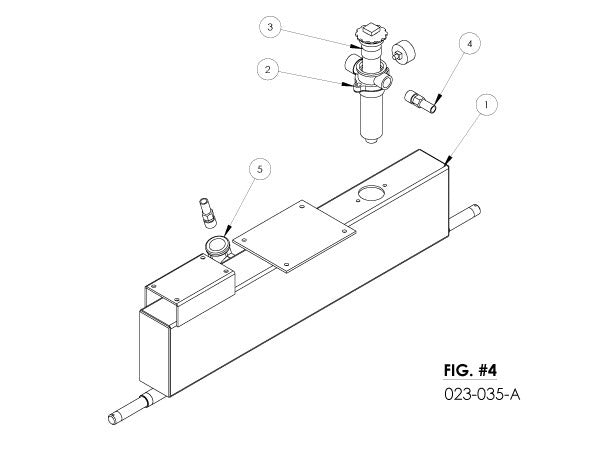

Figure 4 | Tank Sub-Assembly
| Part Number | Description | Quantity | |
|---|---|---|---|
| 1 | 020-035-W | Tank Weldment | 1 |
| 2 | 094-104 | R Assembly | 1 |
| 3 | 20000-20038 | Intank Filter Element (TW-P1) | 1 |
| 3 | 20000-20039 | Intank Filter Element (TW-HV1) | 1 |
| 3 | 20000-20042 | Intank Filter Element (TW-2) | 1 |
| 4 | 102-035 | 3/4" Hose Barb | 2 |
| 5 | 102-014 | 3/4" Street 90 | 1 |
Figure 5 | LS-3000-1 Valve
| Part Number | Description | Quantity | |
|---|---|---|---|
| 1 | 50000-10003 | Single Spool Valve | 1 |
| 2 | 102-007 | 1/2" 90 Deg Swivel | 3 |
| 3 | 083-125 | 3/4"x1/2" Busing | 1 |
| 4 | 102-014 | 3/4" Street 90 | 1 |
| 5 | 102-035 | 3/4" Hose Barb | 1 |
