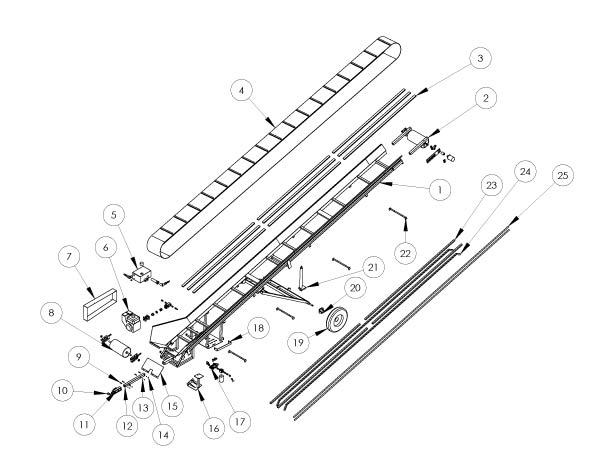

Parts Breakdown |
20-PB-HD
| Part Number | Description | Quantity | |
|---|---|---|---|
| 1 | 020-001-W | 20 Foot Conveyor Frame | 1 |
| 2 | 072-111-THD | Top Drive Drum | 1 |
| 3 | 350-003 | 3/4 x 2 x 8 Foot Plastic | 9 |
| 4 | 073-003-1 | 2 Ply Ruff Top Paddle Belting | 1 |
| 5 | 094-117-A | Hydraulic Conveyor Tank (Fig 2) | 1 |
| 6 | 040-107-HC | Hydraulic Conveyor Motor | 1 |
| 7 | 023-018 | Pulley Guard | 1 |
| 8 | 072-111-BHD | Bottom Drum Assembly | 1 |
| 9 | 7/16 x 3 1/2 Bolts Grade 5 NC | 4 | |
| 10 | 063-003 | Coupler Snapper Pin | 1 |
| 11 | 063-002 | 2" Ball Coupler | 1 |
| 12 | 025-005 | Conveyor Hitch Tube | 1 |
| 13 | 7/16 Lock Washer Grade 5 | 4 | |
| 14 | 7/16 Nuts Grade 5 | 4 | |
| 15 | 023-013 | Front Guard | 1 |
| 16 | 025-005-W | Conveyor Valve Stand | 1 |
| 17 | 104-101-HC | Hydraulic Conveyor Valve | 1 |
| 18 | 023-027 | Conveyor Motor Guard | 1 |
| 19 | 061-201 | 12" Tire | 2 |
| 20 | 082-100-A | 4 Bolt Hub (Fig 3) | 2 |
| 21 | 063-007 | 4 Ton Jack | 1 |
| 22 | 022-051-W | Slider Cross Angles | 4 |
| 23 | 350-004 | U Channel Plastic | 4 |
| 24 | 084-003-W | 15 Foot Sliders | 2 |
| 25 | 101-001-20 | 1/2" Hydraulic Hose | 2 |

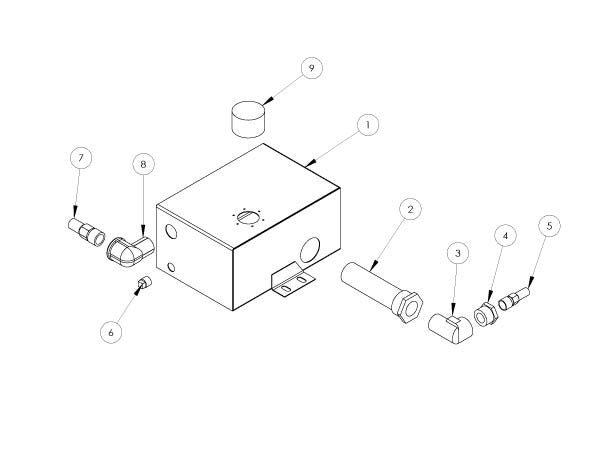

Figure 2 | Hydraulic Conveyor Tank
| Part Number | Description | Quantity | |
|---|---|---|---|
| 1 | 094-117 | Hydraulic Conveyor Tank | 1 |
| 2 | 094-110 | Suction Strainer | 1 |
| 3 | 102-005 | 1 1/4" Street 90 Deg Elbow | 1 |
| 4 | 083-006 | 1 1/4 x 3/4" Bushing | 1 |
| 5 | 102-035 | 3/4" Hose Barb | 1 |
| 6 | 205-105 | 1/2" Tank Plug | 1 |
| 7 | 102-034 | 1" Hose Barb | 1 |
| 8 | 102-059 | 1" Street 90 Deg Elbow | 1 |
| 9 | 094-008 | Filler Breather Cap | 1 |
Figure 3 | 4 Bolt Hub
| Part Number | Description | Quantity | |
|---|---|---|---|
| 1 | 065-003 | Dust Cap | 1 |
| 2 | Cotter Pin | 1 | |
| 3 | 062-022 | 1" Castle Nut | 1 |
| 4 | 082-101 | Wheel Bearings | 2 |
| 5 | Lug Nuts | 4 | |
| 6 | 082-100 | 4 Bolt Hub | 1 |
| 7 | 061-106 | Dust Seal | 2 |
